Compressed air filters and activated carbon adsorbers

Reliable and profitable, pure compressed air

Kaeser compressed air filters and activated carbon adsorbers provide your systems and processes reliable, highly efficient protection against dust, aerosols and oil vapours – for all purity classes as per ISO 8573-1, perfectly compatible with our range of compressors and other compressed air treatment options.

Kaeser compressed air filters are available with a pressure of 16 bar, whilst high-pressure filters range up to 45 bar; filters are also available in a silicon-free version, such as for use in painting processes.


An overview of our compressed air filters and activated carbon adsorbers


KAESER FILTER series, 0.6 - 32.0 m³/min

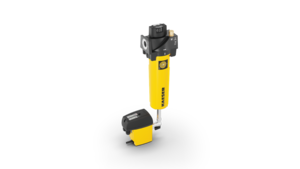

KAESER FILTERS, 0.6–14.2 m³/min

The new high-tech filters for all purity classes, with generously dimensioned filter housings and top efficiency validated according to ISO 12500

  • Maximum working pressure: 16 bar
  • Aluminium housing with variable selectable threaded connections
  • Extremely straightforward installation and maintenance
Quick entry
KAESER FILTER series, 0.6 - 32.0 m³/min

KAESER FILTER series, 35.4 - 336.3 m³/min

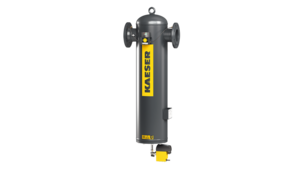

Coalescence filter with ECO-DRAIN from Kaeser Compressors

High-tech filters for all purity classes, with generously dimensioned filter housings and top efficiency validated according to ISO 12500.

  • Maximum working pressure 16 bar
  • Steel housing, coated and painted on both sides
  • Coalescence filter always with ECO-DRAIN electronic condensate drain
Quick entry
KAESER FILTER series, 35.4 - 336.3 m³/min

High-pressure filters up to 45 bar

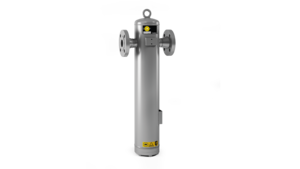

High-pressure filters up to 45 bar

The perfect companion to our Kaeser reciprocating compressors and booster stations – such as for blower air production and PET bottle production.

  • Flow rate 1.75 – 14.2 m³/min
  • High-quality stainless steel filter housing
  • Reliable ECO-DRAIN electronic condensate drain
Quick entry
High-pressure filters up to 45 bar

Activated carbon adsorbers

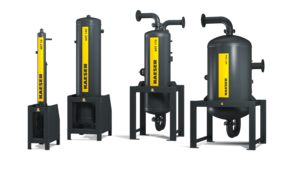

Activated carbon adsorber

Service-friendly continuous running units for reliable removal of oil vapours and odours – especially recommended for compressed air process applications in the optics, electronics and pharmaceutical industry.

  • Flow rate 1.60 – 155.50 m³/min
  • Maximum working pressure 10, 16 or 45 bar

For Class 1 residual oil content as per ISO 8573-1 (concentration range 0 - 0.01 m³/min)

Quick entry
Activated carbon adsorbers
