Compressed air station standard models: The SXC Compact series


Compressed air stations with integrated refrigeration dryer and air receiver

Compressed air stations (*) from the SXC series have been especially designed by KAESER for trades and crafts applications. Featuring a footprint of just 0.62 m², they combine all of the components required for a compressed air supply beneath a single, durable polyethylene enclosure: a rotary screw compressor with the SIGMA PROFILE, a refrigeration dryer and an air receiver.

Compressed air stations from the SXC series are available with the following performance specifications:

  • Pressure: 8, 11 or 15 bar
  • Flow rate range: 0.26 – 0.80 m³/min

Your benefits

  • Plug and play:
    Our all-in-one compressed air systems require minimal effort when it comes to piping and installation. Simply connect the station to a power supply and your compressed air network and that’s it – you’re ready to go!
  • Protected from corrosion damage:
    Thanks to the integrated refrigeration dryer, SXC systems deliver high-quality compressed air that protects your tools and equipment from corrosion damage.
  • Simple maintenance:
    All maintenance points are easily accessible by lifting off the lightweight, removable enclosure constructed from rotomoulded polyethylene. The electronic condensate drain can be inspected via a grille. Maintenance is simple and effective.

* This dryer series contains fluorinated greenhouse gases. All models contain refrigerant R-513A (GWP 631).

Profitable thanks to low life-cycle costs
Life-cycle costs

Our comprehensive approach to optimal profitability: Optimal efficiency, easiest operation, service-friendliness and a global service and consulting network with fast response times.



The SXC compressed air station in detail

Equipment

Complete unit

SXC service – removable enclosure
  • Ready-to-run
  • Fully automatic
  • Super silenced
  • Vibration-damped
  • Double-skinned rotational moulded polyethylene enclosure
  • Optimal accessibility of all service points after cover removal

Sound insulation

  • Sound enclosure
  • Anti-vibration mounts
  • Dual anti-vibration mounts

Electric motor

  • Energy-saving motor (IE3)
  • Quality German manufacture
  • IP 54
  • Insulation class F for greater power reserve

Rotary screw airend

SIGMA PROFILE rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.

V-belt drive

  • Maintenance-free belt
  • No re-tensioning necessary

Fluid and air flow

  • Honeycombed dry air filter
  • Inlet with check valve
  • Pneumatic venting valve
  • Cooling fluid tank with separately installed separator cartridge
  • Pressure relief valve
  • Minimum pressure/check valve
  • Micro-filter in the cooling fluid circuit

Cooling

  • Air-cooled
  • Aluminium cooler for cooling fluid with separate fan motor
  • Second fan on drive motor shaft
  • Automatic warm run control (only active at very low loads)

Receiver

  • Internally coated
  • Electronically controlled condensate drain

SIGMA CONTROL 2

SIGMA CONTROL 2 compressor controller
  • Traffic-light LEDs for at-a-glance operational status
  • Easy-to-read display
  • 30 selectable languages
  • Soft-touch icon buttons
  • Fully-automatic monitoring and control
  • Interfaces: Ethernet
  • SD card slot for data logging and updates
  • RFID reader
  • Web server

Electrical components

  • Control cabinet to IP 54
  • Automatic star-delta contactor combination (above 3 kW)
  • Overcurrent trip
  • Control transformer

Refrigeration dryers

  • Control cabinet to IP 54
  • Automatic star-delta contactor combination (above 3 kW)
  • Overcurrent trip
  • Control transformer
  • Contains fluorinated greenhouse gas R-513A

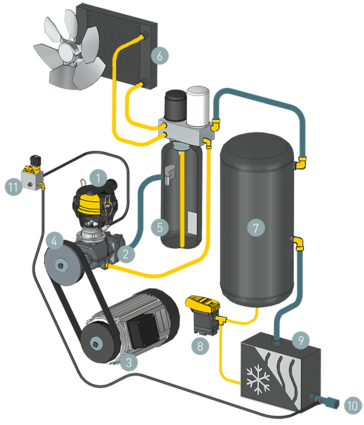

SXC component layout
SXC component layout
  1. Air filter
  2. Airend
  3. Drive motor
  4. Automatic belt tensioning
  5. Fluid separator tank
  6. Cooler
  7. Air receiver
  8. ECO DRAIN condensate drain
  9. Refrigeration dryer
  10. Compressed air outlet
  11. Control valve
Technical specifications

Standard version

ModelSXC 3 SXC 4 SXC 6
Working pressure bar 7.5 10 7.5 10 13 7.5 10 13
Flow rate complete system at working pressure m³/min 0.34 0.26 0.46 0.37 0.26 0.6 0.49 0.38
Max. positive pressure bar 8 11 8 11 15 8 11 15
Nominal motor output kW 2.2 3 4
Refrigeration dryerCT 4 CT 4 CT 8
Receiver volume l 215 215 215
Dimensions
W x D x H mm
620 x 980 x 1,480 620 x 980 x 1,480 620 x 980 x 1,480
Compressed air connectionG ¾ G ¾ G ¾
Sound pressure level dB(A) 68 69 69
Weight kg 285 285 290

ModelSXC 8
Working pressure bar 7.5 10 13
Flow rate complete system at working pressure m³/min 0.8 0.68 0.55
Max. positive pressure bar 8 11 15
Nominal motor output kW 5.5
Refrigeration dryerCT 8
Receiver volume l 215
Dimensions
W x D x H mm
620 x 980 x 1,480
Compressed air connectionG ¾
Sound pressure level dB(A) 69
Weight kg 300

Add-on refrigeration dryer

ModelCT 4 CT 8
Power consumption kW 0.18 0.28
Pressure dew point °C 3 3
RefrigerantR-513A R-513A
Global warming potential631 631
Refrigerant volume kg 0.17 0.24
Refrigerant mass as CO2 equivalent t 0.1 0.2
Hermetic refrigeration circuit
