Oil-lubricated workshop compressors

A sure fit, even for the smallest workshop

EUROCOMP series stationary reciprocating compressors are designed for daily use in workshops. To make installation easier, KAESER offers flexible air receiver options. You can choose between the following versions:

  • With horizontal air receiver: the most popular version for larger spaces
  • With vertical air receiver: the version with a reduced footprint for smaller spaces
  • Units can be integrated with or added onto existing compressed air systems

The compressor blocks provide the following performance parameters:

  • Pressure: 10/15 bar
  • Flow rate: 112 – 1050 l/min

The benefits

  • Small space? No problem!
    When equipped with vertical air receiver, the compressor requires just 0.85 m² of space.
  • Extend the service life of your tools:
    The highly efficient cooling system fitted to our stationary workshop compressors keeps compressed air and oil temperatures to a minimum. This ensures longer service life for both the compressor and any connected air tools.
  • Valves with reliable sealing:
    We use stroke-limited valves with stainless steel reeds in our stationary workshop compressors. This improves heat dissipation and prevents the build-up of carbon deposits, whilst also significantly enhancing the sealing properties and service life of the valves.
Life-Cycle Cost Management
Life-cycle costs

Our main objective is to construct compressors that deliver exceptional performance over an extended service life with minimal energy consumption. The use of high-quality materials and careful production methods are just the beginning.
To further enhance their efficiency, we have equipped our EUROCOMP compressors with corrosion-resistant valves, direct-drive and an exceptionally efficient cooling system.



Product details

Equipment

Compressor

  • Air-cooled compressor block with oil ring lubrication (oil-injection lubrication up to 2.4 kW)
  • Inlet air filter with silencer
  • Aluminium cylinder heads and additional cooling pipes ensure excellent heat dissipation
  • Multi-chamber, aluminium ring cooler also serves as a fan guard (3 kW model upwards)
  • Lightweight, low-noise reed valves
  • Oil filler, oil vent, oil drain plug and oil level sight glass
  • Direct coupling of compressor and motor
  • Compressor, motor and pressure receiver fitted with anti-vibration mounts and flexible hose connection between compressor and air receiver
  • Anti-vibration mounts for air receiver

Motor

  • Four-pole, 1500 strokes per min., three-phase 400 V / 50 Hz
  • Protection rating IP 54, type B 15
  • Integrated axial fan for compressor and motor cooling

Optional extras (additional cost)

  • Sound enclosure
  • Operating hours counter
  • Alarm contact
  • Air receiver with integrated electronic condensate drain
  • Bolt-down machine mounts
  • Food-grade or synthetic oil
  • 3 m or 5 m connection cable, with/without CE plug
  • Oil level monitoring with automatic switch off triggered by insufficient oil level
Versions

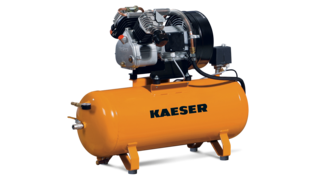

EUROCOMP workshop compressors – horizontal air receiver

Horizontal version

The horizontal air receiver versions of EUROCOMP reciprocating compressors are popular for workshop applications.

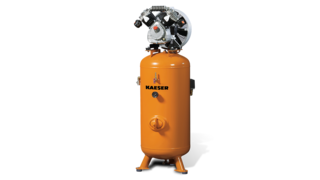

EUROCOMP workshop compressors – vertical air receiver

Vertical version

The space-saving version with vertical air receiver. All air receivers, whether vertical or horizontal, feature a corrosion-resistant internal coating (up to 350 l).

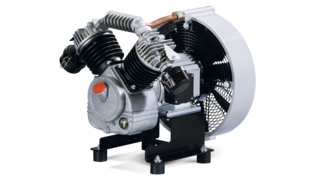

EUROCOMP workshop compressors – unit for existing air receivers

Base-mounted version

Perfect as replacement equipment, or for connection to existing systems with an available compressed air receiver, base-mounted units are also available for stand-alone use.

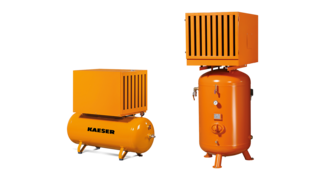

EUROCOMP workshop compressors – sound protection enclosure

Optional sound enclosure

The highly-effective sound enclosures for EUROCOMP compressors can be installed optionally ex-works; they can also be retrofitted quickly and easily.

Accessories

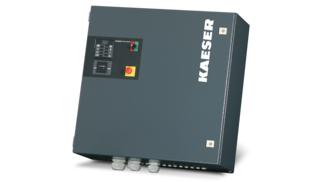

Star-delta starter

Star-delta starter

  • Control cabinet with automatic star-delta protection combination
  • Dust- and waterproof to IP 54
  • With KAESER CONTROL operating hours counter and monitoring module
  • (required for 5.5 kW motors and higher).

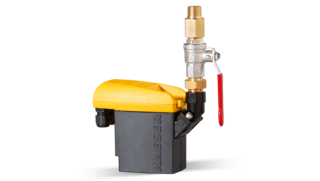

ECO-DRAIN electronic condensate drain as complete set.

Electronic condensate drain

  • Level-sensing controlled ECO-DRAIN condensate drain
  • Complete set for installation on air receiver
  • Including all assembly components and fittings

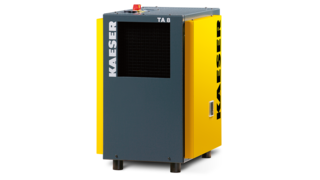

SECOTEC energy-saving refrigeration dryers, TF series

Compressed air dryer

Additional compressed air drying is essential to avoid production downtime and interruptions, as well as to minimise costly maintenance and repair work. Kaeser compressed air dryers are the perfect addition to EUROCOMP reciprocating compressors.

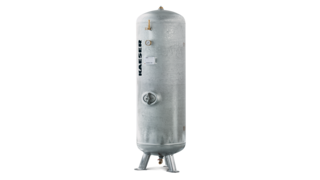

KAESER air receivers

Air receivers

EUROCOMP packages are available with horizontal or vertical air receivers. Hot-dip galvanizing ensures optimal corrosion resistance. The air receivers are designed in accordance with AD 2000 to enable long inspection intervals.

Technical specifications

The technical specifications can be found in this brochure:
